Scoop Wing

These are the results of a CFD "virtual wind tunnel" simulation of a Kyosho Mini-Z MR03 Mazda 787b 3D model with a scoop wing.

The drag force recorded by the simulation while the car was "racing" at 10 m/s (36 km/h) was 11.7 gf. The down force recorded by the simulation at this speed was 13.5 gf.

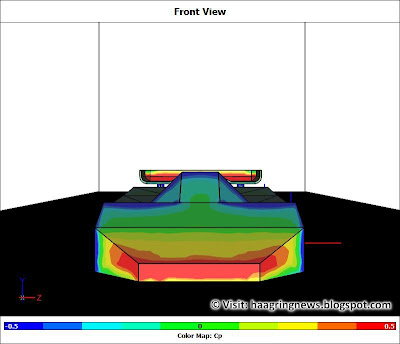

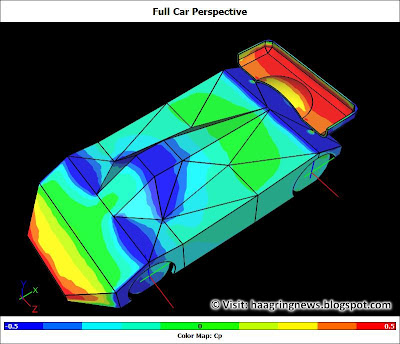

The pictures below show the pressure coefficient (Cp) indicating high (red) and low (blue) pressure areas.
